Fine horizontal grinding

Fine grinding for extrusion and specialty products.

Giuliani Hermanos manufactures in Rafaela, Santa Fe, fine grinding systems for smaller particles with a controlled distribution, essential in pet food, aquafeed and other demanding applications. The aim is to reach the required GMD at high throughput with the lowest possible specific energy consumption.

Where it is used Enquire about this equipment

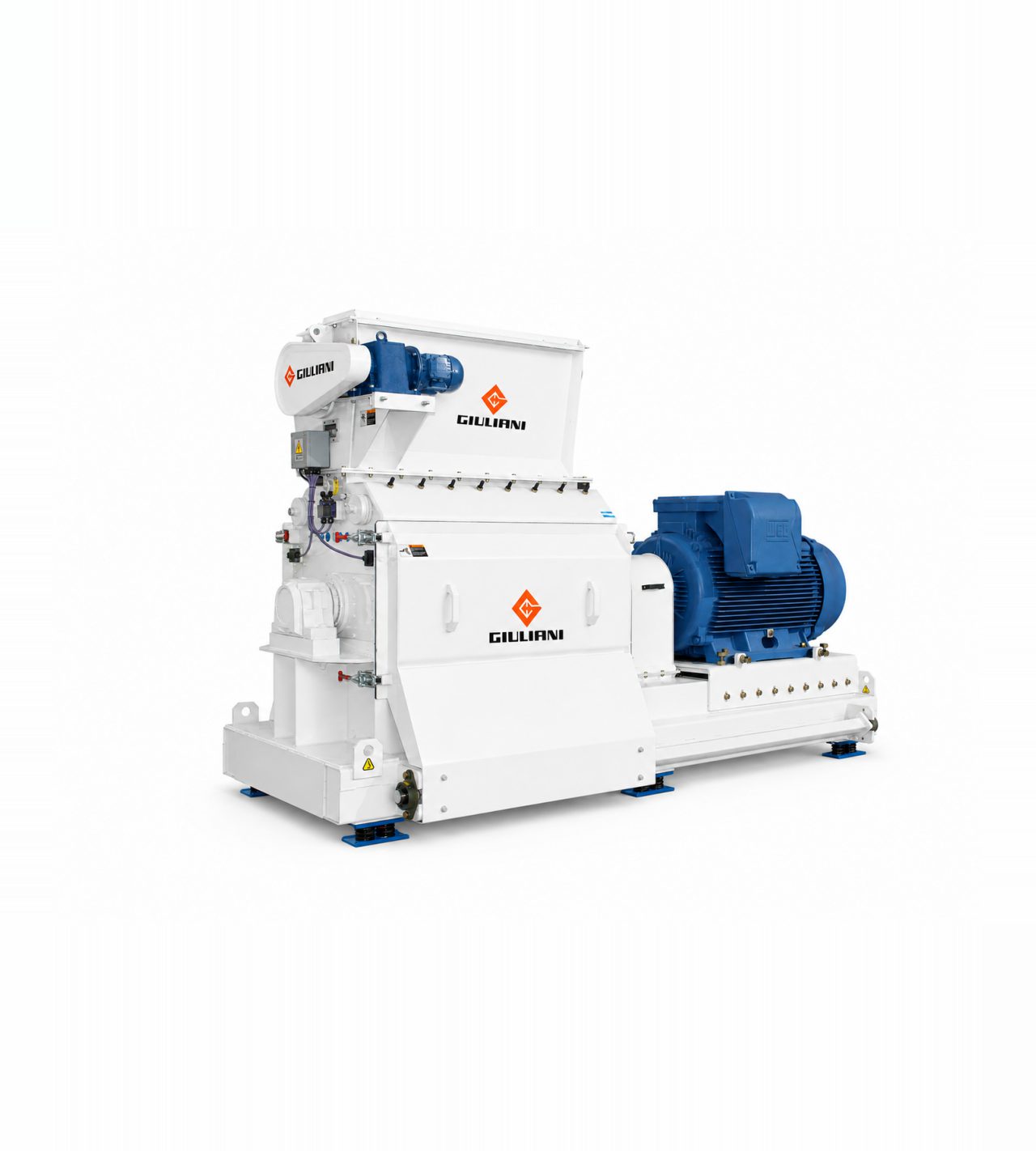

Horizontal fine-grinding mill manufactured by Giuliani Hermanos
Up to 10 Tn/H
MMF137 and MMF70-120 capacity.
From 0.8 mm
MMF70-120 screen perforation.

Features of the line.

Nine features shared by the whole line, not by one model.

Pneumatic door lock

Locks the doors automatically while the mill is running, until the rotor stops, preventing them from being opened and giving the operator greater safety.

Pneumatic door lock on a Giuliani mill, with its cylinder and locking rod

Automatic rotation reversal

Automatically reverses the direction of rotor rotation and redirects the feed flow, so both sides of the hammers are used and their service life is extended.

Rotation reversal actuator on a Giuliani mill, with its valves and wiring

Automatic lubrication

Automatically doses the grease the bearings need, keeping lubrication constant and reducing maintenance stops.

Bearing housing of a Giuliani mill under its transparent cover, with the automatic lubricator

Door closure sensor

Checks that the access doors are properly closed before the mill is allowed to run, increasing safety during operation.

Closure sensor mounted on the frame of an access door of a Giuliani mill

Underspeed sensor

Monitors rotation speed and detects abnormal drops, making it possible to act on overloads or unsuitable operating conditions.

Underspeed sensor pointing at the shaft of a Giuliani mill, on its bracket

Vibration monitor

Supervises the mill vibrations and helps detect abnormal running conditions, protecting the equipment from possible imbalance or mechanical failure.

Vibration sensor mounted inside the frame of a Giuliani mill

Flap gate position detection

Controls the position of the feed flap gate to make sure the product enters in the direction matching the rotor rotation.

Feed flap gate mechanism of a Giuliani mill, with its two pneumatic cylinders

Fully removable rotor

The chamber carries replaceable wear parts and rotor, extending the service life of the mill beyond 30 years. They are replaced because more capacity is needed, not because the equipment has worn out.

Rotor bearing support of a Giuliani mill, bolted to the chamber frame

Multi-position motor base

Lets the motor position be adapted to different power ratings, making correct alignment easier and speeding up adjustment and maintenance work.

Motor of a Giuliani mill mounted on its adjustable base, with the setting bolts exposed

Processes it takes part in.

Interviene en 3 de los 18 procesos que Giuliani Hermanos integra en sus plantas.

Industries that use it.

3 de las 12 industrias a las que provee Giuliani Hermanos lo incorporan en su línea.

Questions about fine horizontal grinding.

What kind of product are they?

A line built for screen perforations from 0.8 mm upwards. Ideal for aquafeed and pet food, among other applications.
