Giuliani

Horizontal grinding

Controlled grinding for every formulation.

Giuliani Hermanos manufactures in Rafaela, Santa Fe, horizontal mills aimed at a uniform particle size distribution and a controlled GMD, combining throughput with energy efficiency. The configuration is matched to the raw materials, the formulation and the needs of the stages that follow.

  • Automatic bearing lubrication
  • Bearing temperature sensor
  • Pneumatic door lock
  • Underspeed sensor
  • Vibration monitor
Where it is used Enquire about this equipment

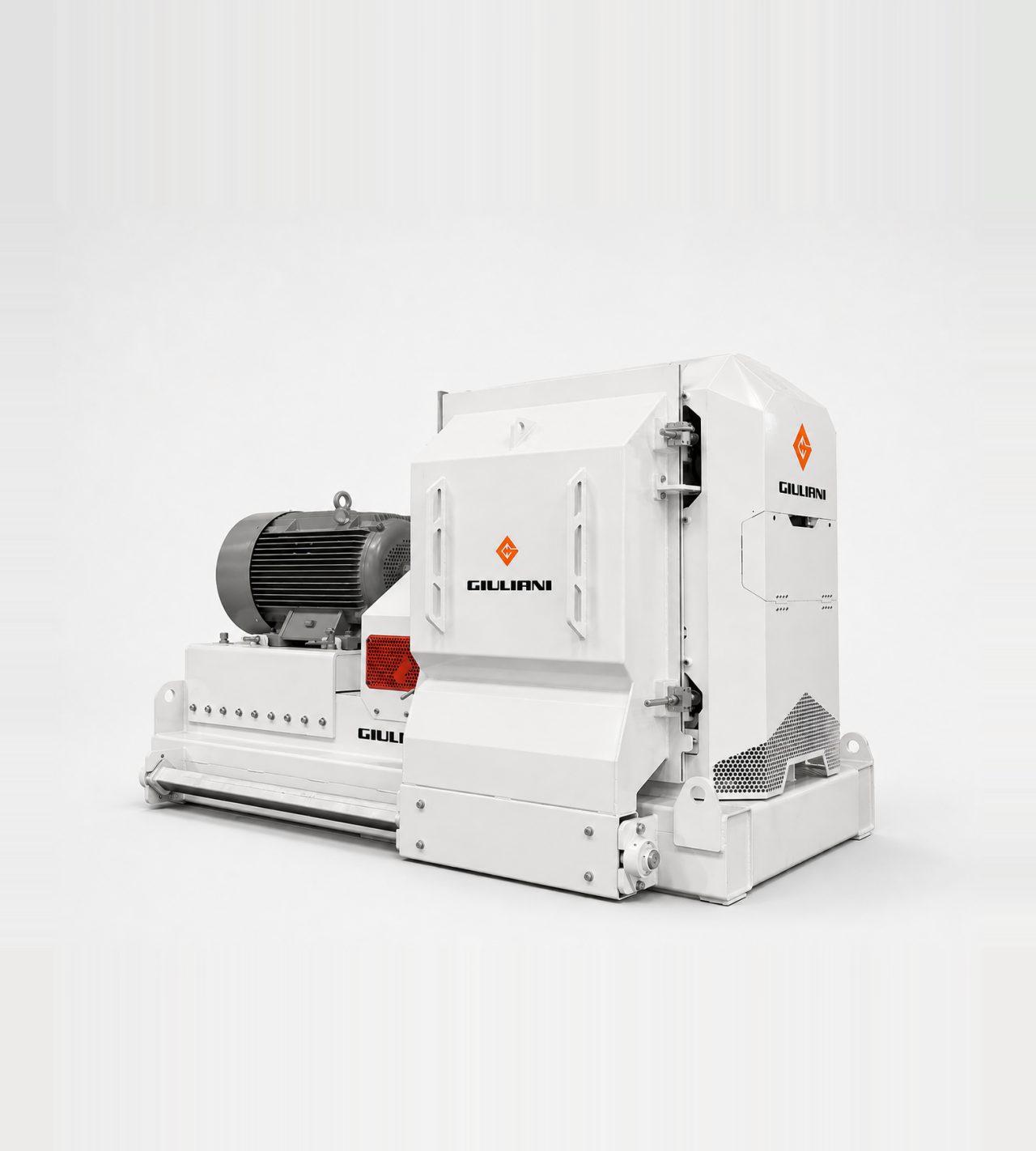

Horizontal hammer mill manufactured by Giuliani Hermanos
Giuliani hammer mill seen from the motor end
Giuliani hammer mill seen from the front, with both access doors open
Giuliani hammer mill in three-quarter view, with the motor and the feed hopper
150 to 500 HP
Motor power ratings.
5 to +50 tonnes per hour
Depending on the material being ground.
125 to 500 CV
Efficient energy consumption.
Operational safety
Restricted access to moving parts.

Features of the line.

Nine features shared by the whole line, not by one model.

Pneumatic door lock

Locks the doors automatically while the mill is running, until the rotor stops, preventing them from being opened and giving the operator greater safety.

Pneumatic door lock on a Giuliani mill, with its cylinder and locking rod

Automatic rotation reversal

Automatically reverses the direction of rotor rotation and redirects the feed flow, so both sides of the hammers are used and their service life is extended.

Rotation reversal actuator on a Giuliani mill, with its valves and wiring

Automatic lubrication

Automatically doses the grease the bearings need, keeping lubrication constant and reducing maintenance stops.

Bearing housing of a Giuliani mill under its transparent cover, with the automatic lubricator

Door closure sensor

Checks that the access doors are properly closed before the mill is allowed to run, increasing safety during operation.

Closure sensor mounted on the frame of an access door of a Giuliani mill

Underspeed sensor

Monitors rotation speed and detects abnormal drops, making it possible to act on overloads or unsuitable operating conditions.

Underspeed sensor pointing at the shaft of a Giuliani mill, on its bracket

Vibration monitor

Supervises the mill vibrations and helps detect abnormal running conditions, protecting the equipment from possible imbalance or mechanical failure.

Vibration sensor mounted inside the frame of a Giuliani mill

Flap gate position detection

Controls the position of the feed flap gate to make sure the product enters in the direction matching the rotor rotation.

Feed flap gate mechanism of a Giuliani mill, with its two pneumatic cylinders

Fully removable rotor

The chamber carries replaceable wear parts and rotor, extending the service life of the mill beyond 30 years. They are replaced because more capacity is needed, not because the equipment has worn out.

Rotor bearing support of a Giuliani mill, bolted to the chamber frame

Multi-position motor base

Lets the motor position be adapted to different power ratings, making correct alignment easier and speeding up adjustment and maintenance work.

Motor of a Giuliani mill mounted on its adjustable base, with the setting bolts exposed
  • Giuliani hammer mill in three-quarter view, with the drive motor and the feed hopper
  • Side of a Giuliani hammer mill, with the motor on the left and the hopper on the right
  • Giuliani hammer mill seen from the front, with both access doors open
  • Shaft end of a Giuliani mill, with its bearing housing and the extraction screen behind
  • Key lock on an access door of a Giuliani mill
  • Pneumatic lock closed on the door of a Giuliani mill

Processes it takes part in.

Interviene en 3 de los 18 procesos que Giuliani Hermanos integra en sus plantas.

Industries that use it.

5 de las 12 industrias a las que provee Giuliani Hermanos lo incorporan en su línea.

Questions about horizontal grinding.

What kind of product are they?

Built for the highest production demands, our grinding line reaches 500 HP.

The remaining answers are in frequently asked questions
